The PokePak – A PokemonGo Players Ultimate Aid

As someone who has helped launch numerous inventions and new products, I often get asked for advice when friends have a new idea. Typically the first thing I ask about is if there is a prototype in any form. This is a way to see if someone is serious about making something or if it’s just a fleeting idea. When my friend Ryan sent me a text that read

“I had an amazing product idea that could leverage the PokemonGo craze. Could be worth MILLION$, your brother loved it. You’re the first person I thought of.”

I responded with what should be a canned text for me:

“Is it just an idea or fleshed out?”

The next text brought things to a whole new level:

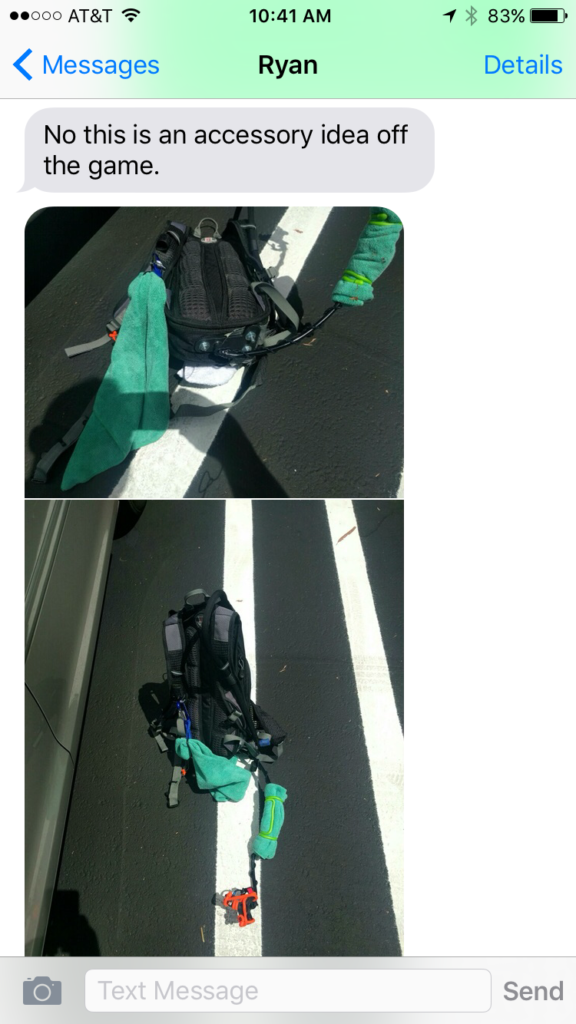

PokePak First Look at the Ultimate PokemonGo Backpack

Note that the picture shows a backpack on the ground in a parking lot, but with a whole lot of attachments that are NOT standard. I’m fairly certain Ryan was actively wearing it, walking around hunting Pokemon like a boss, and whipped it off to snap a shot. Still though what he is showing here, towels and rubber bands and all, is the first step in any good design process. A working prototype of his idea for the ultimate Pokemon Go mobile gaming accessory, lovingly dubbed the PokePak 3.0 (technically he made two other versions that failed in various ways).

For those that do not know about PokemonGo it is an augmented reality game in which one of the ways you can level up (ie. hatch eggs) is by physically moving around. The accelerometer in a smartphone tracks if it is moving and the distance and scores that in the game. Some people have found ways to get their phone moving by attaching it to a fan blade or a bike tire, though both of those may be against the terms of service and considered cheating by the app developer Niantic. The intention of course is to physically explore the world and search for things by walking around, just as the characters in the Pokemon cartoon do.

Required Gear For the Serious PokemonGo Hunter

Ryan is a serious player, and not one to break rules and risk getting banned, so he’s been out walking around a lot staring at his Google Nexus 5 hunting for those ‘mon. Running the PokemonGo app on the phone makes it hard to search out tips and tricks so he found it easier to carry a secondary device, a Google Nexus 7 tablet, on which he could browse forums and the web while still battling away on his phone. Of course walking around fully connected and browsing sucks the battery of both devices so he decided to throw in backup power for each setup in the form of dual Anker 20,000 mAh portable power packs. Carrying all of these stuff while power walking around southern California requires him to keep hydrated so he added in a 2L Sierra Nevada Hydration Pack.

All told the raw gear required to start his day hunting clocks in at at a whopping 9lbs (4.15kg with 3000g of water, 299 grams of Nexus 7, 132 grams of Nexus 5, and 714 grams of raw battery power).

That is more than my daughter weighed when she was born. He’s literally carrying the equivalent of a newborn human on his hunt for fictitious augmented reality monsters.

Surprisingly though Ryan was able to peel time away from hunting to make himself more comfortable. Turns out if you are walking more than 240km in three weeks, as Ryan did in the first three weeks of gameplay, you find ways to make yourself more comfortable.

Hands free walking is the best way to allow for fast reactions and opportunities to interact with the game. That is why the hydration pack was preferred over a handheld water bottle. But more importantly he needed a way to be staring out the Nexus, while he had his hands on the phone, and still be moving around. That’s where the prototyping kicks in and my excitement over product development also steps up a notch.

Ryan had to tie this thing all together to manage the cables, free his hands and hold the devices. That required mounting of phone and tablet holders to the backpack straps and controlling the cables to avoid a messy tangle (that’s left to the beard). Here’s a shot of Ryan wearing the results:

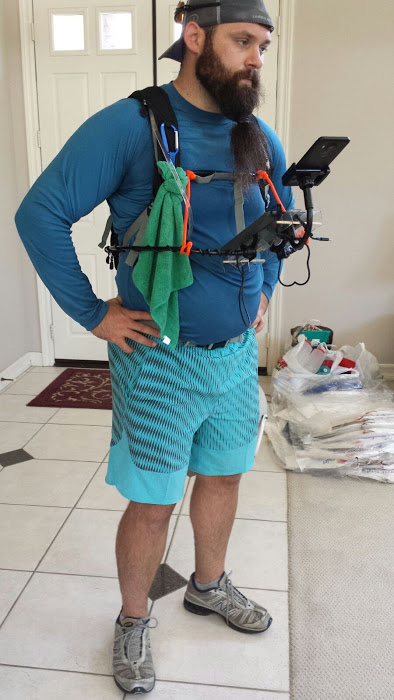

PokePak 3.0 As modeled by inventor and designer Ryan L.
PokePak 3.0 As modeled by inventor and designer Ryan L.

After showing this picture around, and before sharing with the Reddit community, was when I got that initial text. Ryan wanted to know how to get his idea to the right people but after chatting it over we realized that what he really wanted to do was share his hard work. Not every item is designed to be a game changing product, and Ryan has a good job, so despite his excitement he realized it was not the idea that would make him quit and work on putting it into production full time.

Still though, the thought of crowdfunding a run of these has come up. If you are interested in getting a PokePak 3.0 we would be eager to hear from you in the comments. Given the right level of interest we can formalize some of this as a marketable one would need some unique designs to replace the mountain of epoxy holding stuff together.

For now the build instructions are shared below. All credit and thanks go to Ryan L. who put together this crazy contraption!



Overview:

The PokePak 3.0 was designed to facilitate hours of consecutive active, outdoor, hands-free mobile game play. The platform is based on modular theory to handle a variety of device and game play setups.

The PokePak 3.0 system can be built in either one or two arm configurations. This write up will overview a two arm system but the build instructions will just focus on mounting a single arm, as the process is essentially the same.

Features:

  • High Sierra Hydration Pack w/ expanded 3 liter hydration bladder
  • Double extension bar for hands-free gameplay
  • Device Mount for tablet and mobile phone
  • (2) mounting spaces for external battery packs
  • (2) 20k mAh PowerCore battery packs
  • (2) cord management ties for device power management
  • Modular light/fan system w/ 5k mAh Anker PowerCore power source



Bill of Materials:

All hardware can be found at a Home Depot of Lowes and exact sizing can vary. The connector pieces are one of the major opportunities for re-design if it is brought to the next level

  • (1) pack of five ¼” x 1” carriage bolts and nuts
  • (12) ¼” washers
  • (1) pack of #6 bolts and nuts
  • (4) #6 locking crimp washers
  • (2) #6 regular washers
  • (1) [optional] 2’-4’ piece of plastic wall corner protectors
  • Several small zip ties (for keeping power cords secured to the Long Arm Mount
  • (1) [optional] phone mount (this made for a good holder on the end of the long arm mount for a single arm Pak
  • (2) [optional] Anker 20000mAh Portable Charger PowerCore 20100
  • (1) [optional] Anker PowerCore 5000 Portable Charger

Required Tools:

  • Hack saw (for cutting plastic bracket mounts)
  • Drill (for mounting bolts)
  • ¼” and ⅛” drill bits
  • Strong epoxy (J&B Clear Weld)
  • Electrical tape



Assembly and Build:

  • The main part of the build is mounting the long arm to the pack
  • The following detailed instructions and pictures are from a single long arm mounted to the bottom of a pack (PokePak 2.0)
  • Although my current setup is two arms mounted (PokePak 3.0) on the side of the pack, pictures from a previous prototype will serve as a good example of the fabrication needed
  • For the two long arm mount pack (PokePak 3.0) I used additional plastic wall corner protectors (hack sawed to fit) for use as a base frame to secure the brackets to, and also provide an anchor for the bolted on cord management gear ties.
  • I found the best way to make holes in the nylon of the pack for all the bolts was to use a heated metal object (like a screwdriver) to “burn” holes at the desired spots, punching out or drilling the hole didn’t really work well in my experience

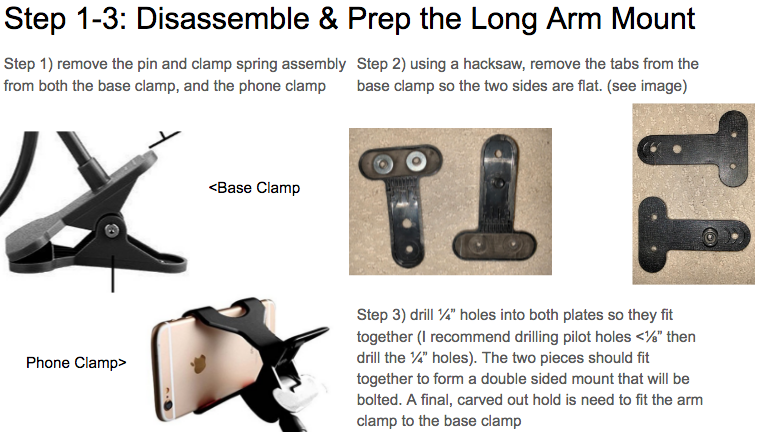

PokePak Build Steps 1-3

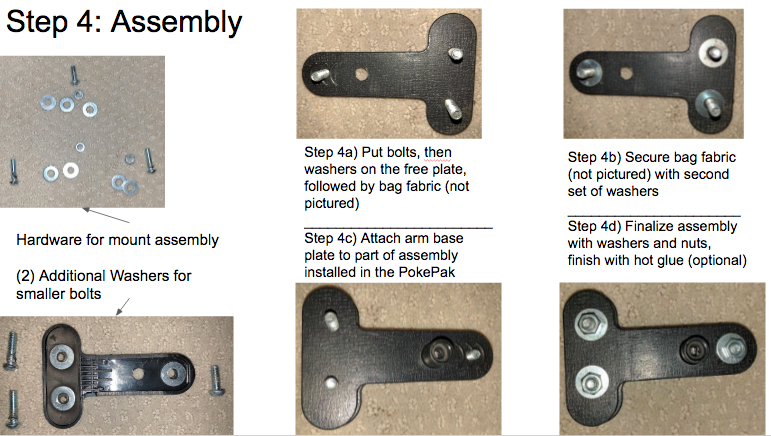

PokePak Build Step 4

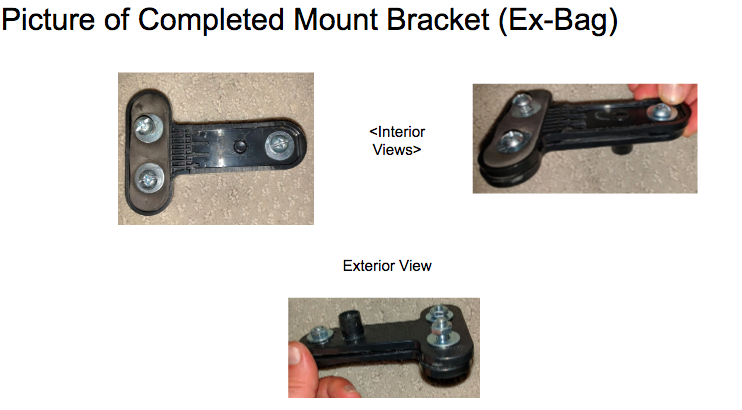

PokePak Build Completed Bracket

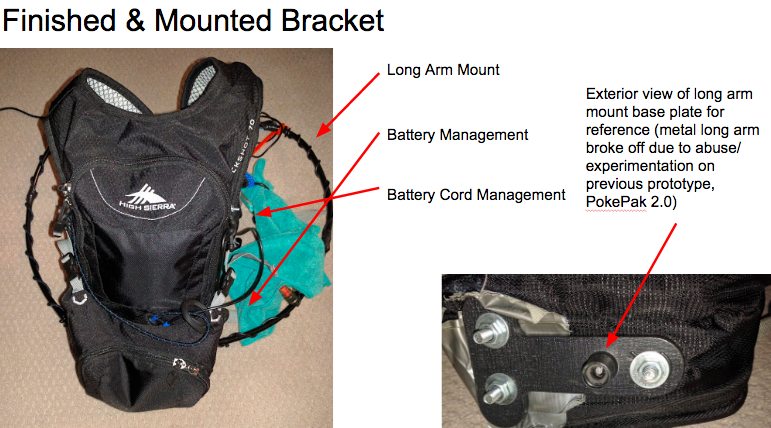

PokePak Finsihed Image

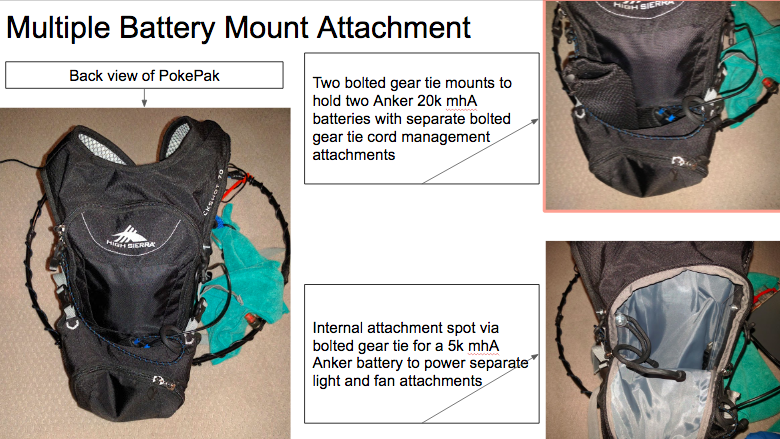

PokePak Battery Mount Attachment

PokePak Cord Management:

Cord Management

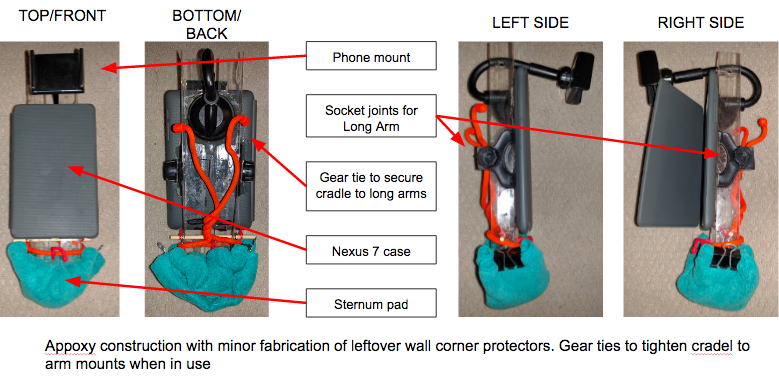

PokePak Tablet Cradle and Phone Mount:

PokePak Tablet Cradle and Phone Mount



Want A PokePak of Your Own?

We are eager to hear feedback but if you want to get any updates regarding PokePak development, or be alerted if/when a crowd-funding campaign goes live let us know.
